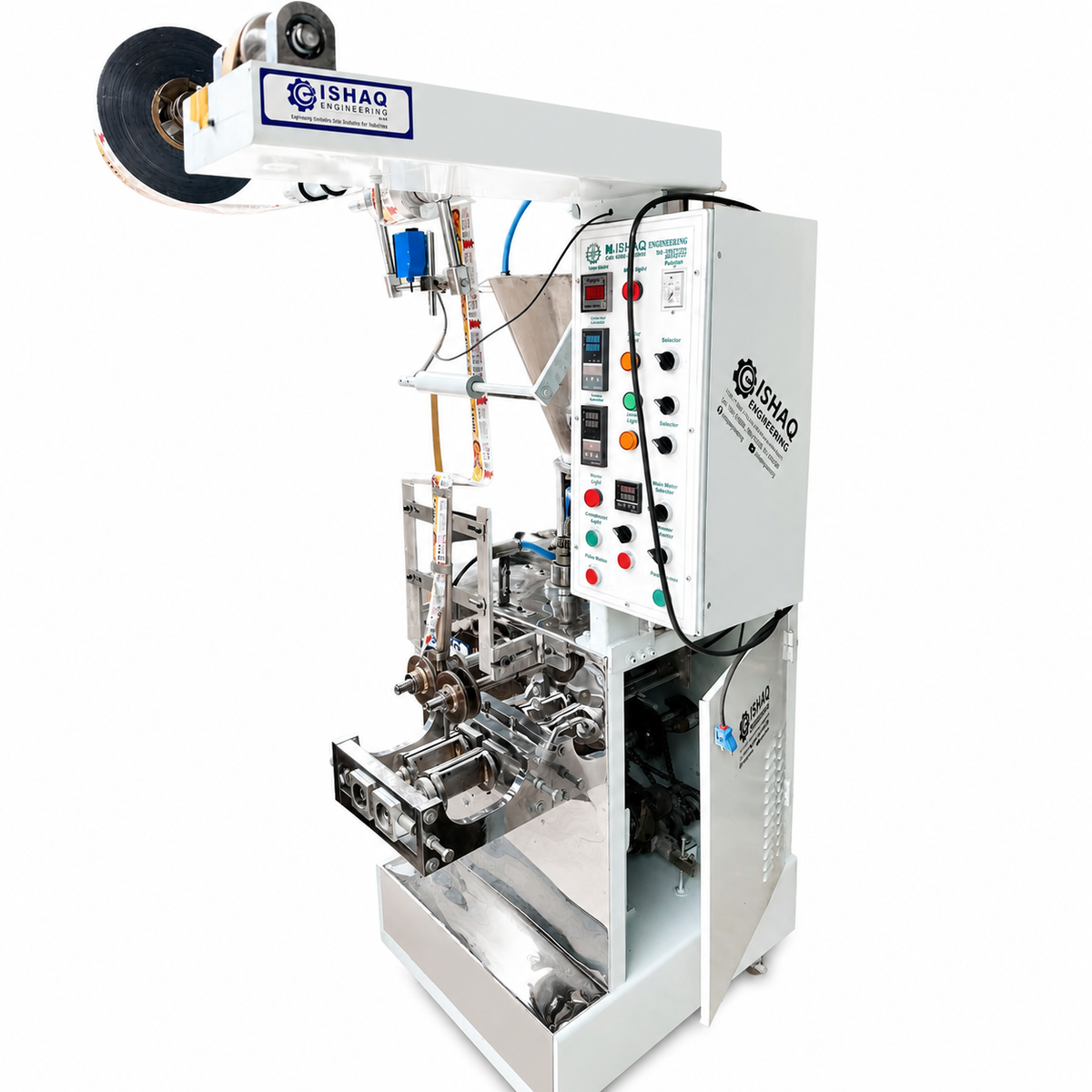

Automatic Vertical Form Fill Seal (VFFS)

Automatic Vertical Form Fill Seal (VFFS)
Filling System
Auger Filler
Application
Tea, Spices, Flour, Coffee, Milk Powder, Detergent & similar powders
Packing Range
10–1000 g
Packing Speed
20–60 packs/min
Bag Width
50–200 mm
Bag Length
50–300 mm
Bag Types
Center Seal, 3-Side Seal, 4-Side Seal
Film Material
PET/PE, BOPP, Aluminum Foil & Laminated Films
Maximum Film Width
Up to 420 mm
Sealing
Heat Sealing
Control System
PLC-based operation + Digital Temperature Control
Power Supply
220V AC, 50/60 Hz, Single Phase
Power Consumption
Approx. 2–3 kW
Machine Body
Mild Steel
Product Contact Parts
Stainless Steel SS304
Dimensions
Approx. 900 × 800 × 1900 mm
Machine Weight
Approx. 250–350 kg
Air Requirement
Optional / configuration dependent
